Gallery

2014-2019

Here are some more projects / interesting things I haven't had a chance to write about.

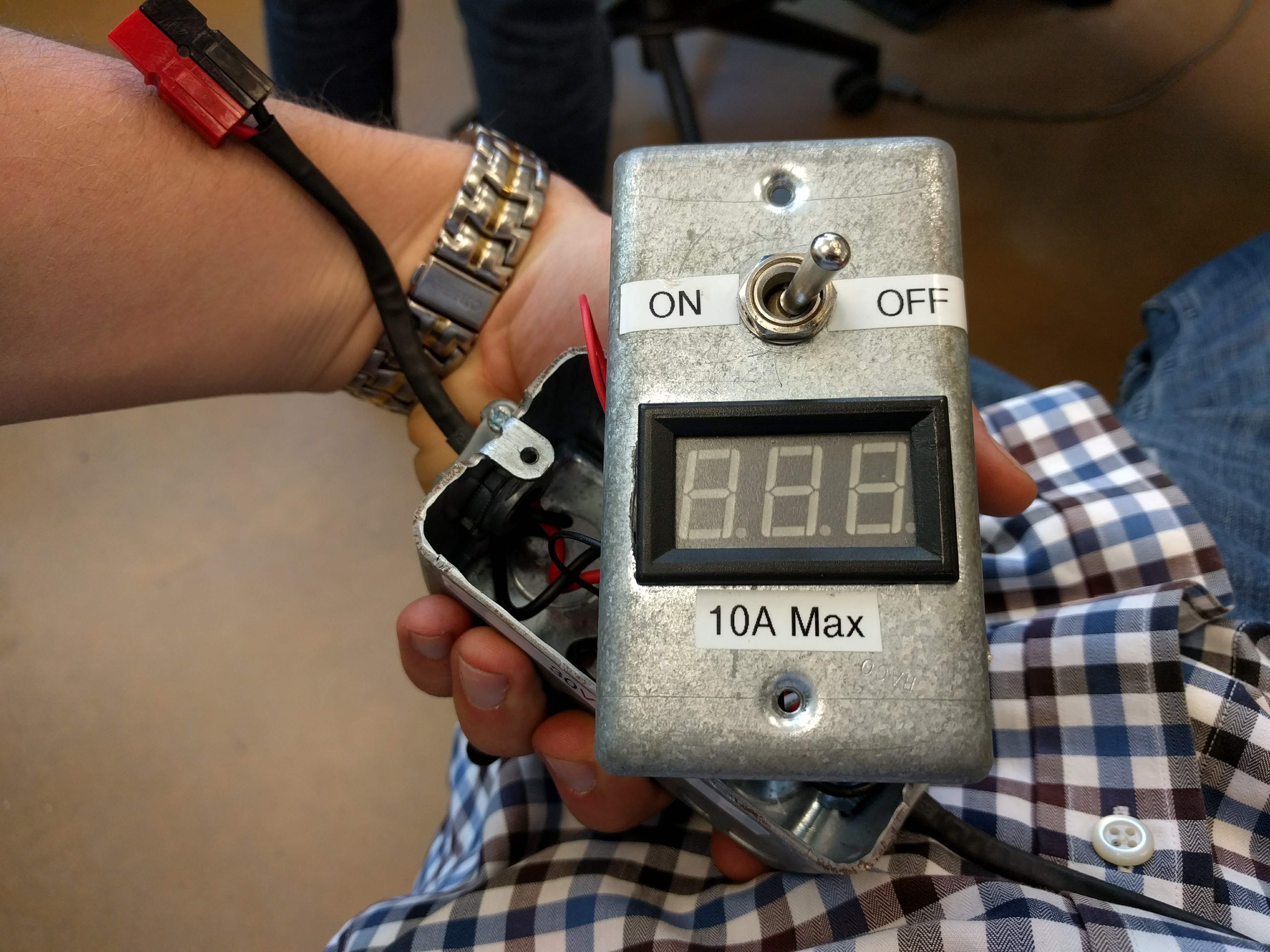

In-line Ammeter I built for Solar Car in 2014

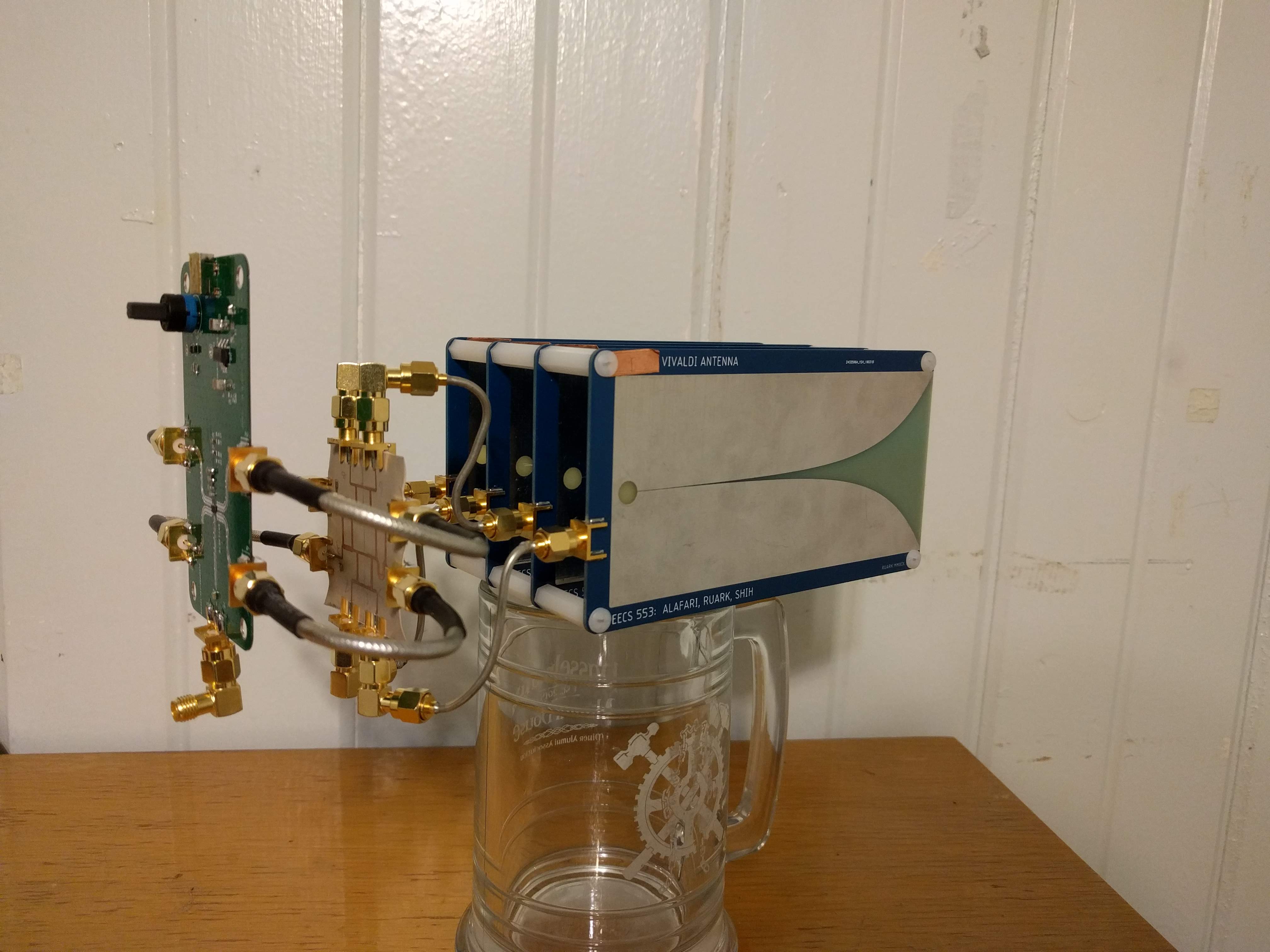

Wideband Vivaldi Antenna Array I Built as a Final Project in 2019

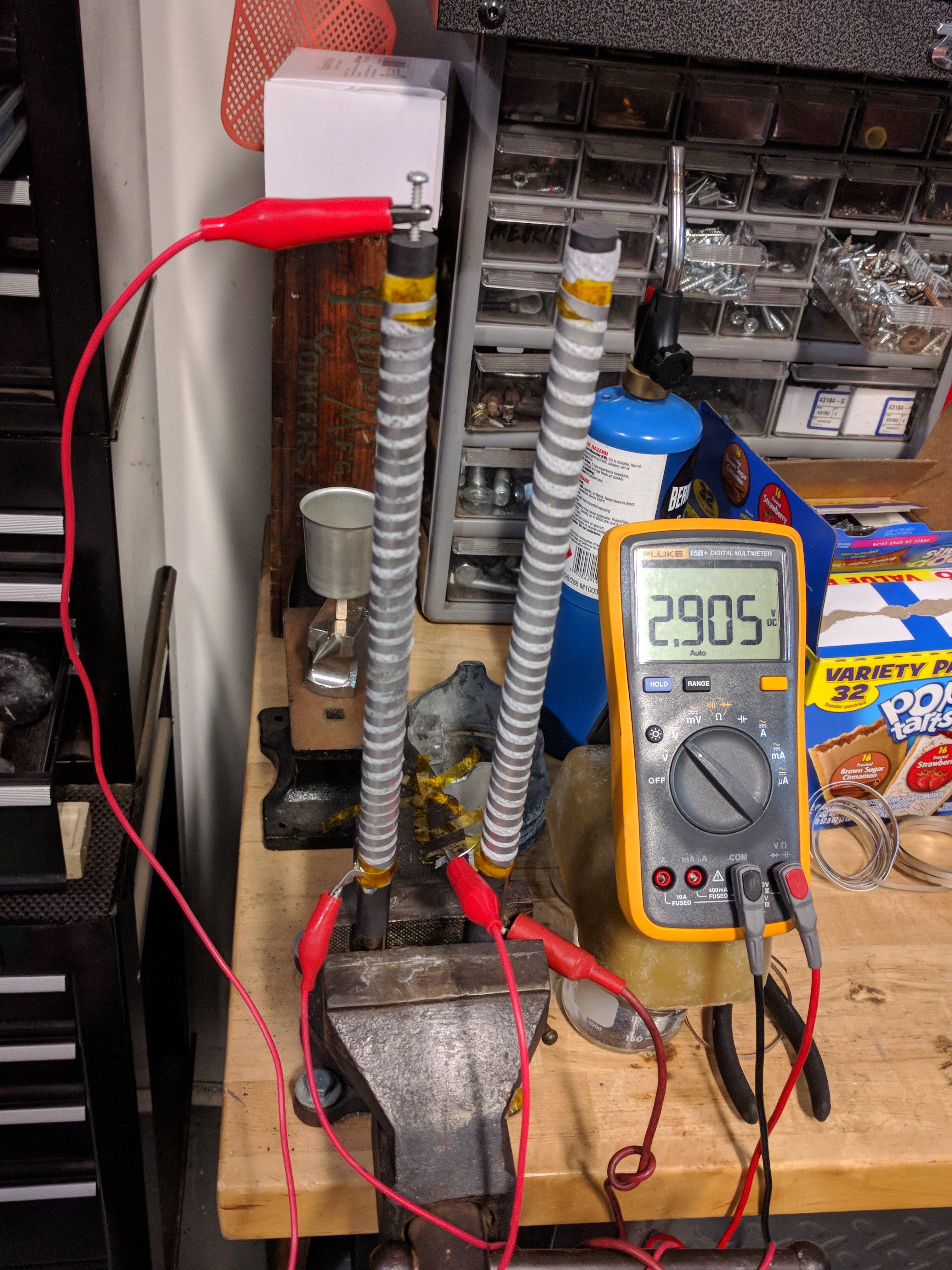

Magnesium Air Battery I Built Using Old Carbon Rods from Rolla Campus Surplus and Magnesium Ribbon. It would Run a LED Flashlight.

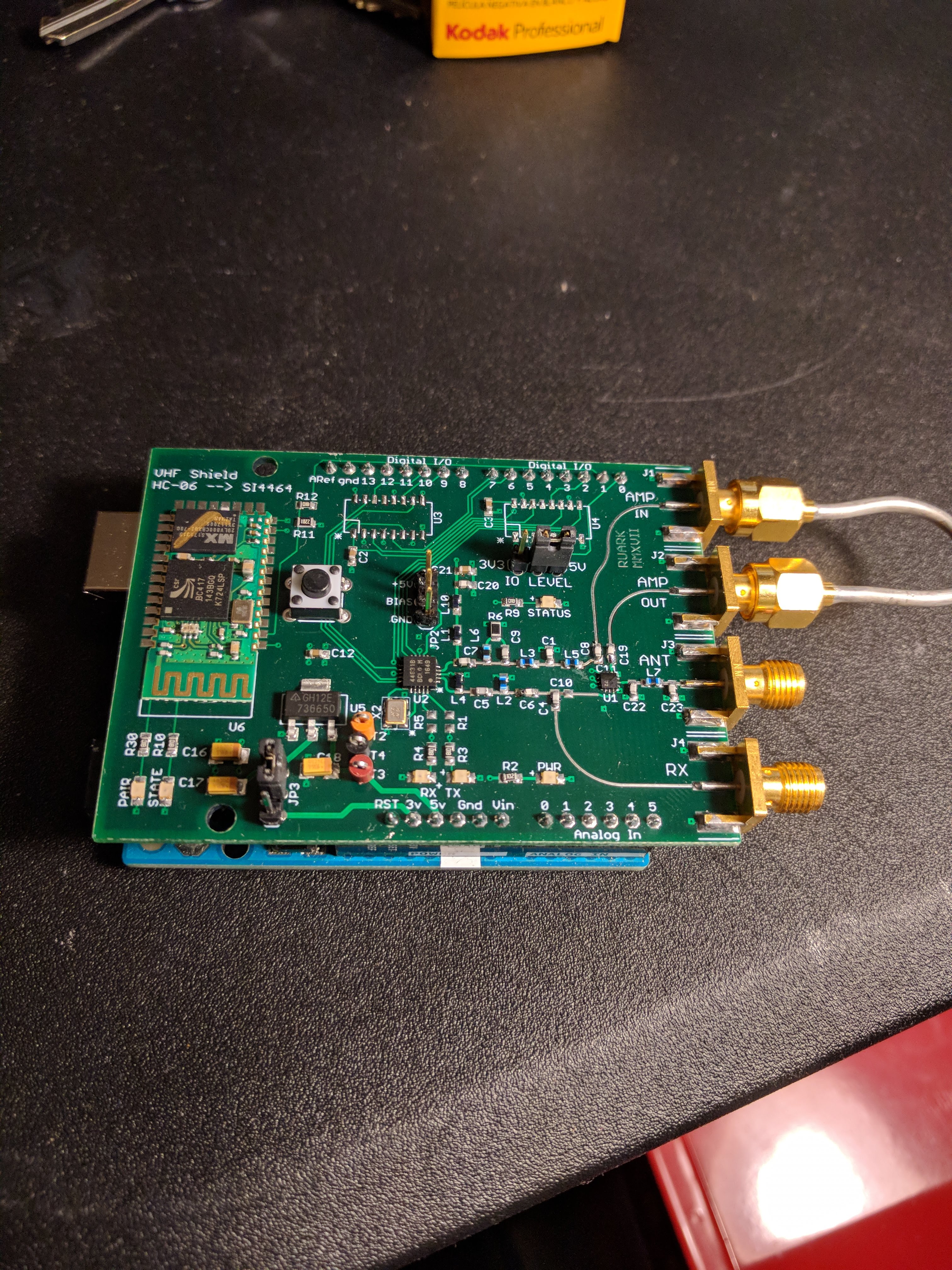

Bluetooth to VHF FSK Bridge

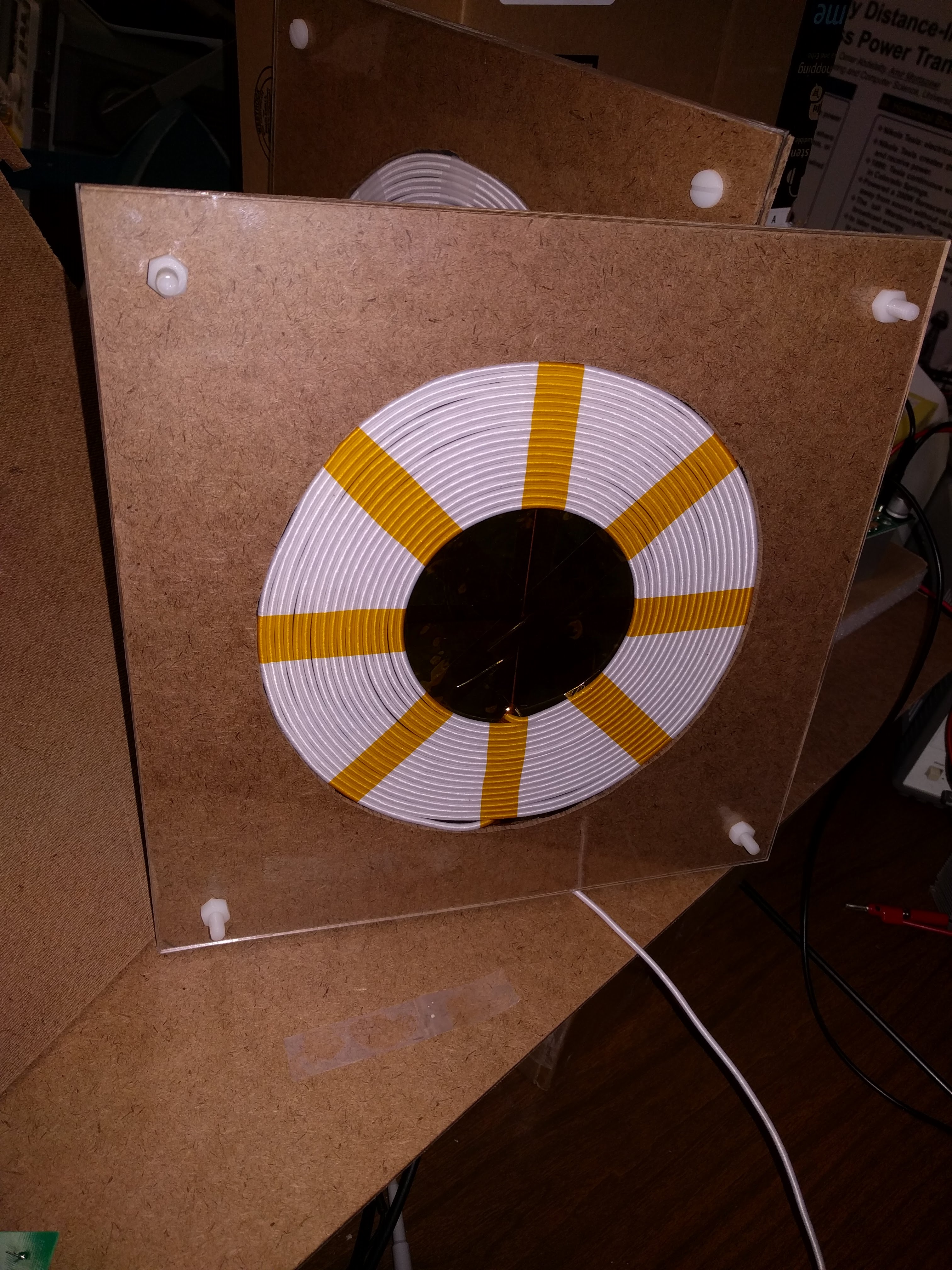

Wireless Power Transfer Coil

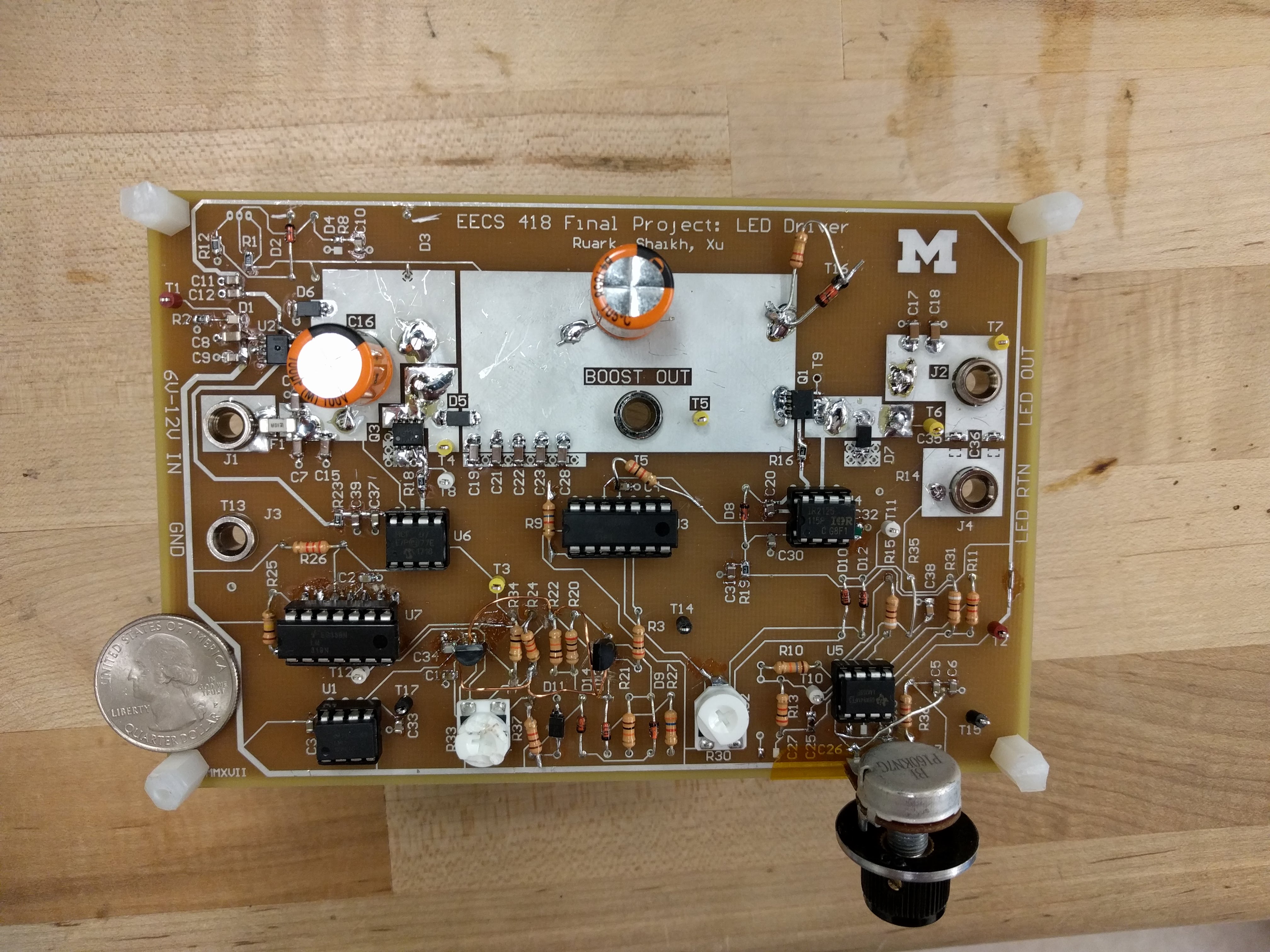

LED Driver From Intro to Power Electronics Final Project

Extracting Metal From Accumulated Pewter Dross

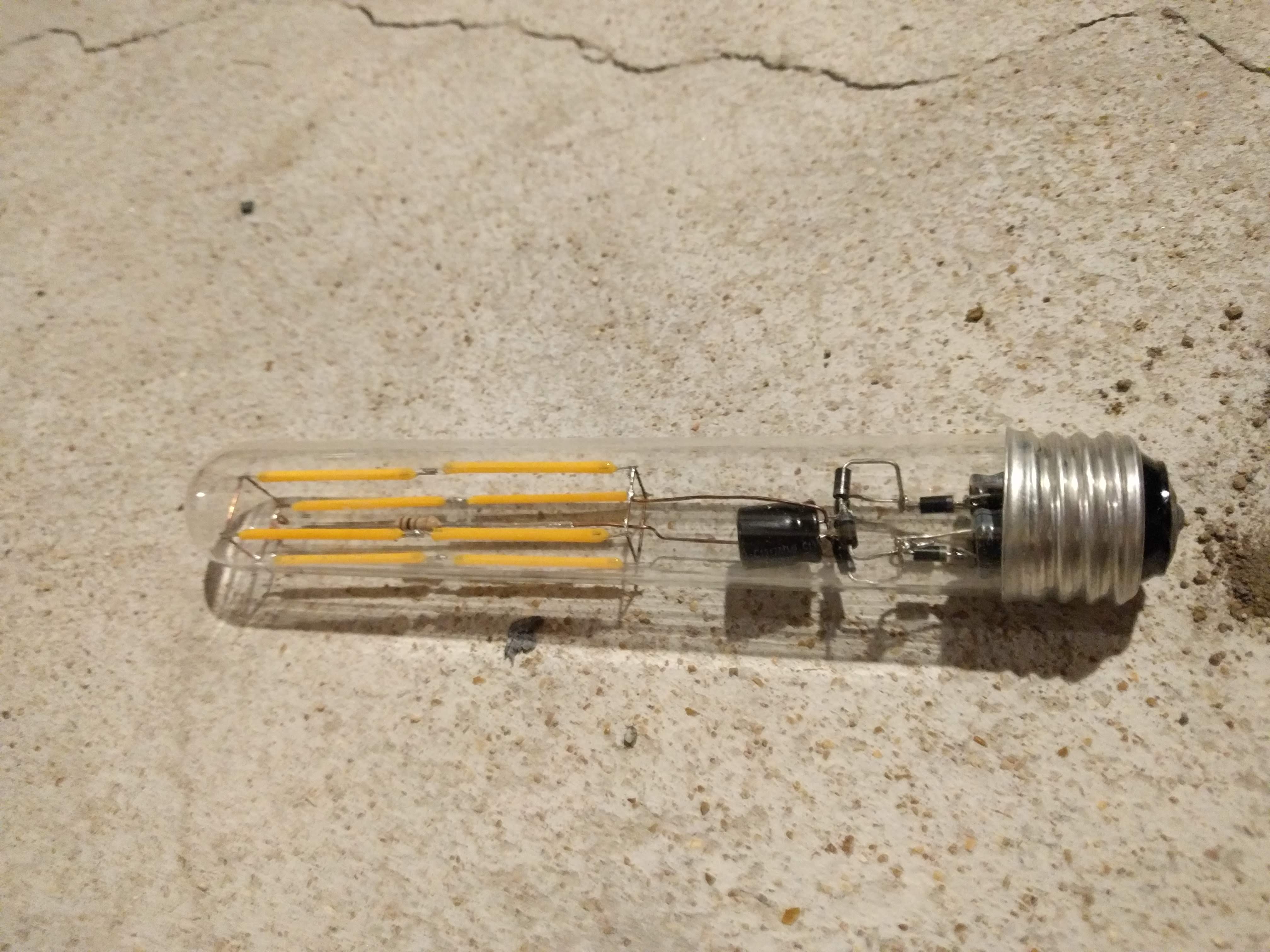

LED Lightbulb I Built in 2015

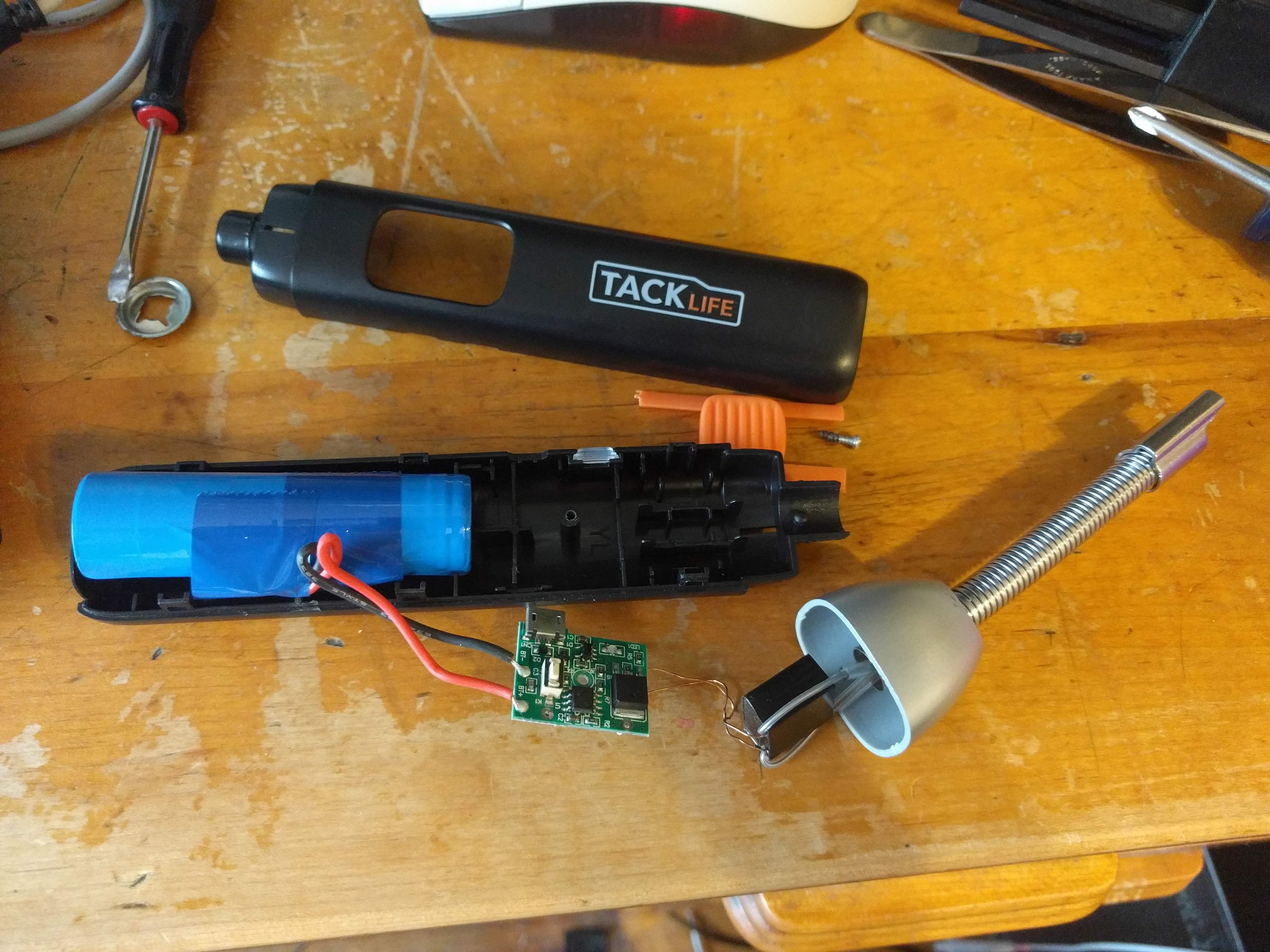

Inside of Electric Lighter

Closeup of Boeing Refueling Drone

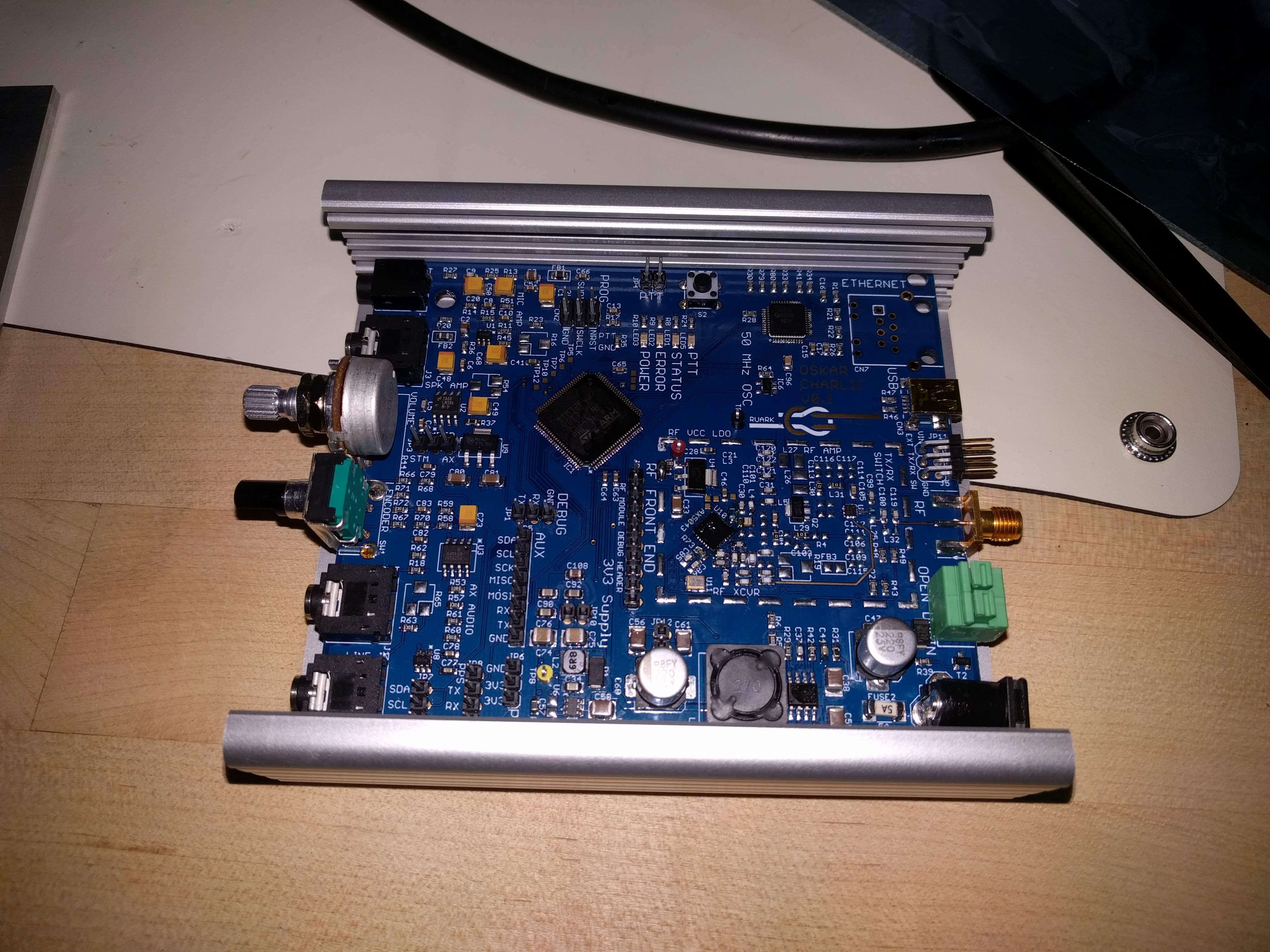

Digital Ham Radio Prototype

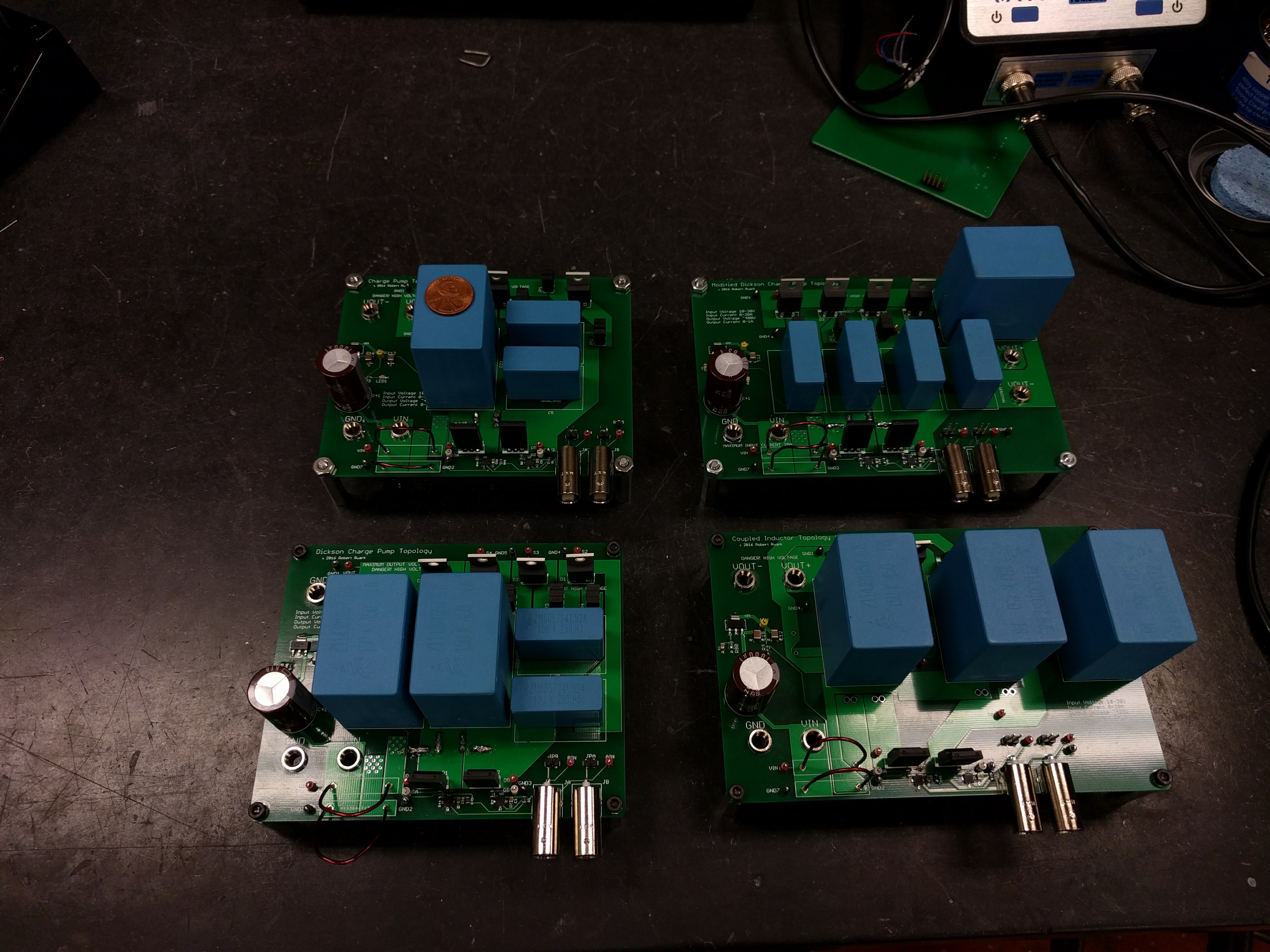

Four High Conversion Ratio Boost Converter Test Boards from Undergrad Research

Brushed Motor Driver I Designed

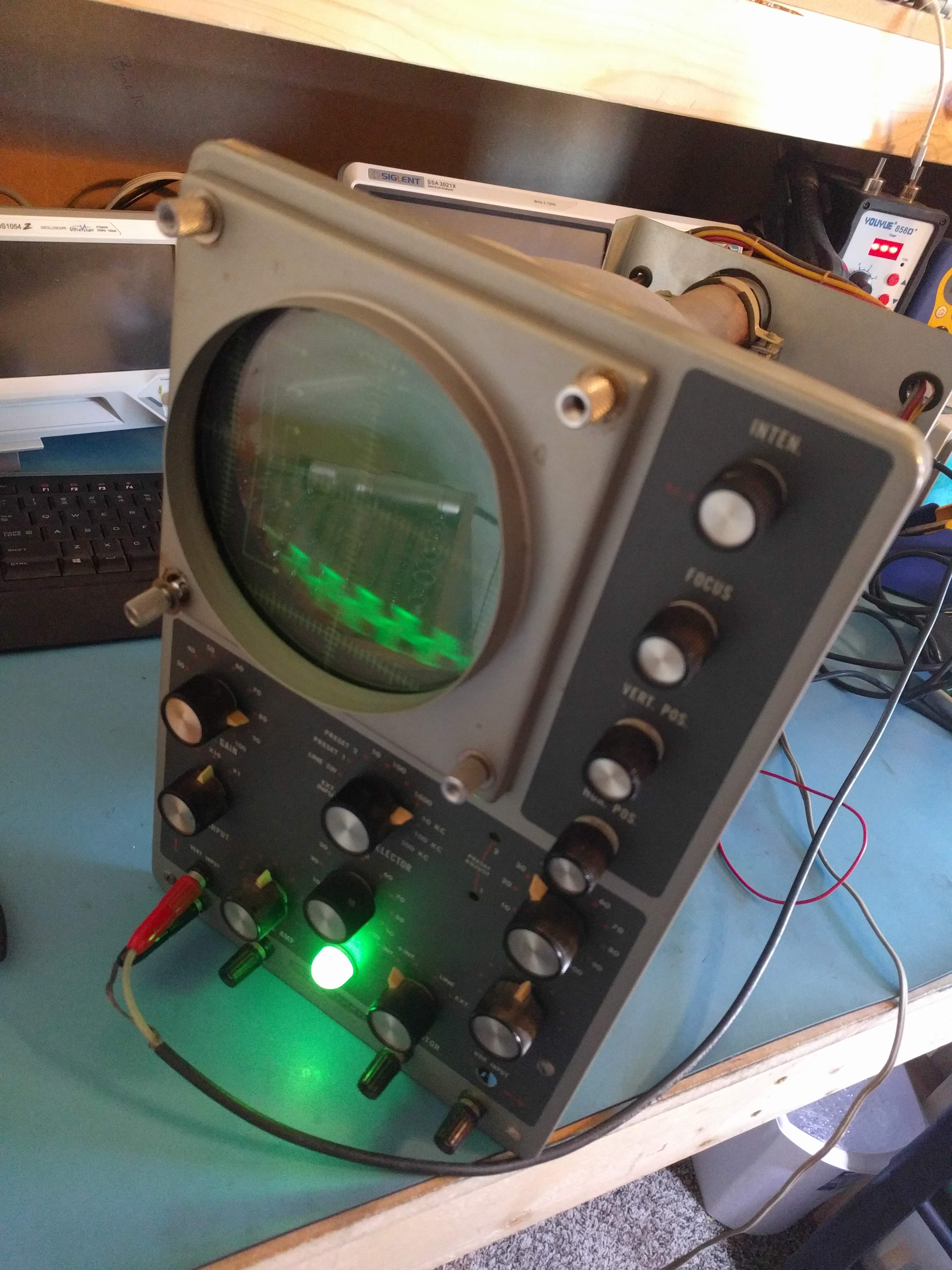

1960's Heathkit Oscilloscope I was Given by a Friend After I Replaced the Rectifier Tube

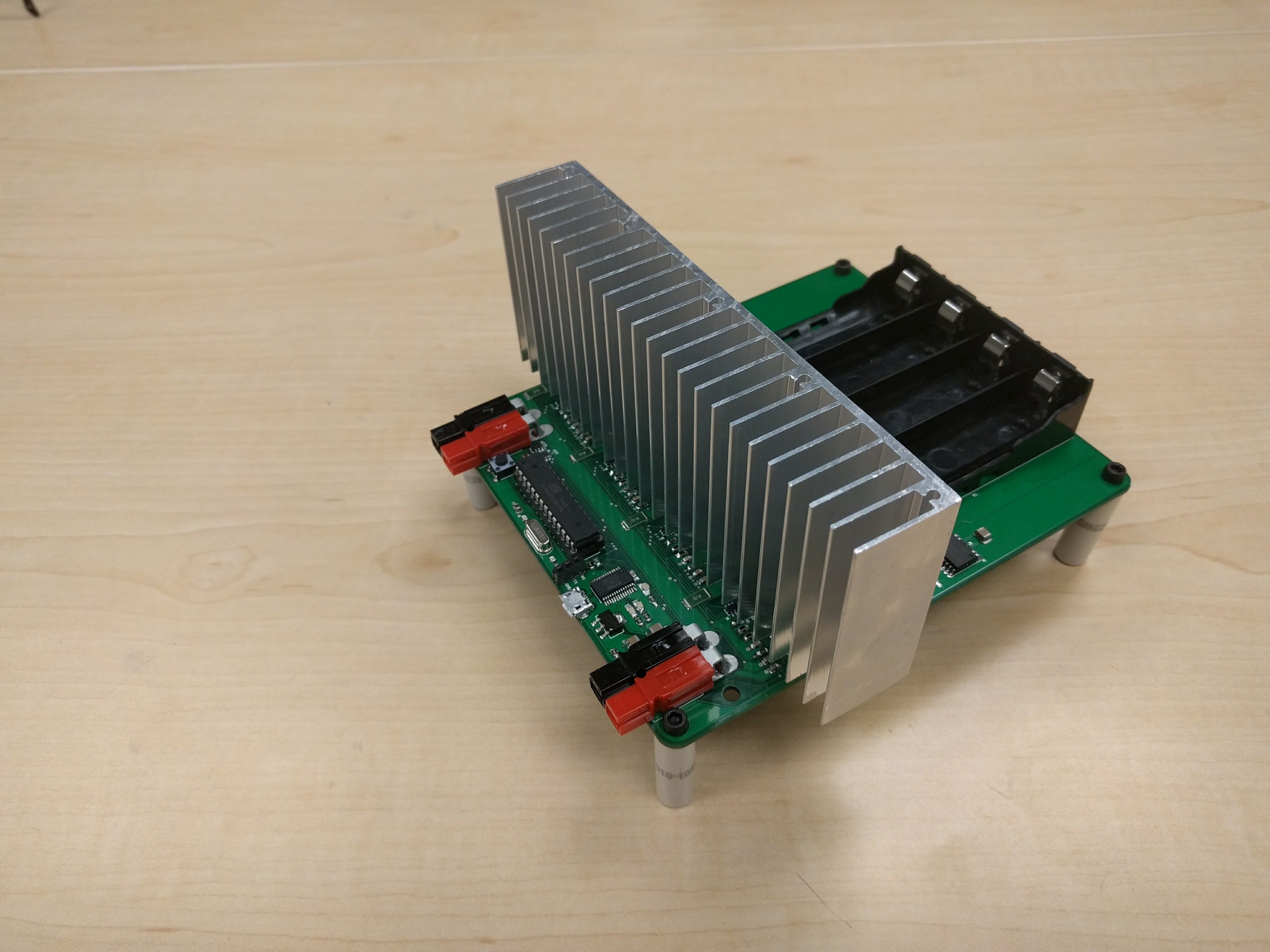

Undergrad Senior Project: Lithium Ion Cell Capacity Meter

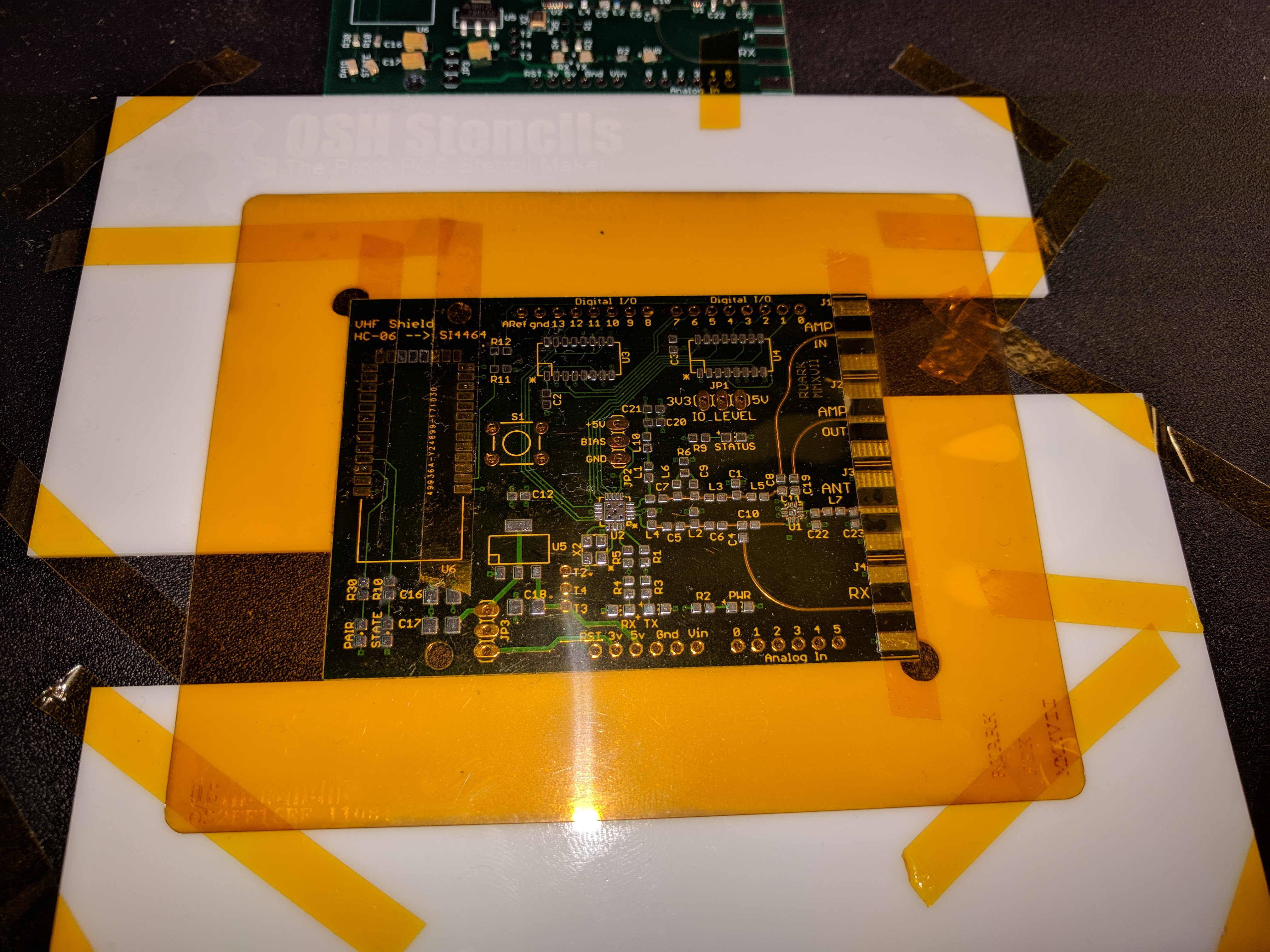

Hand Assembly Using Solder Stencil

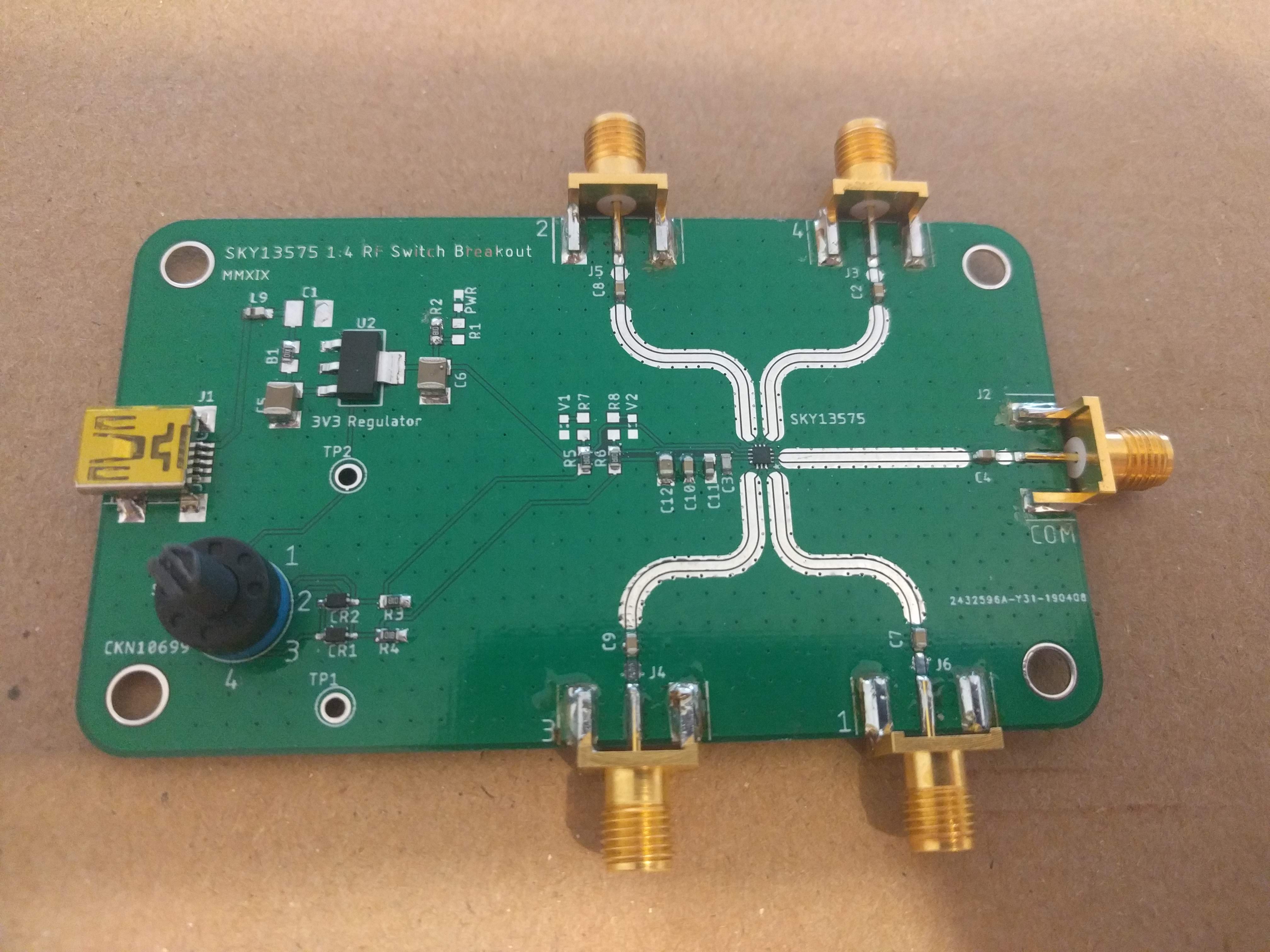

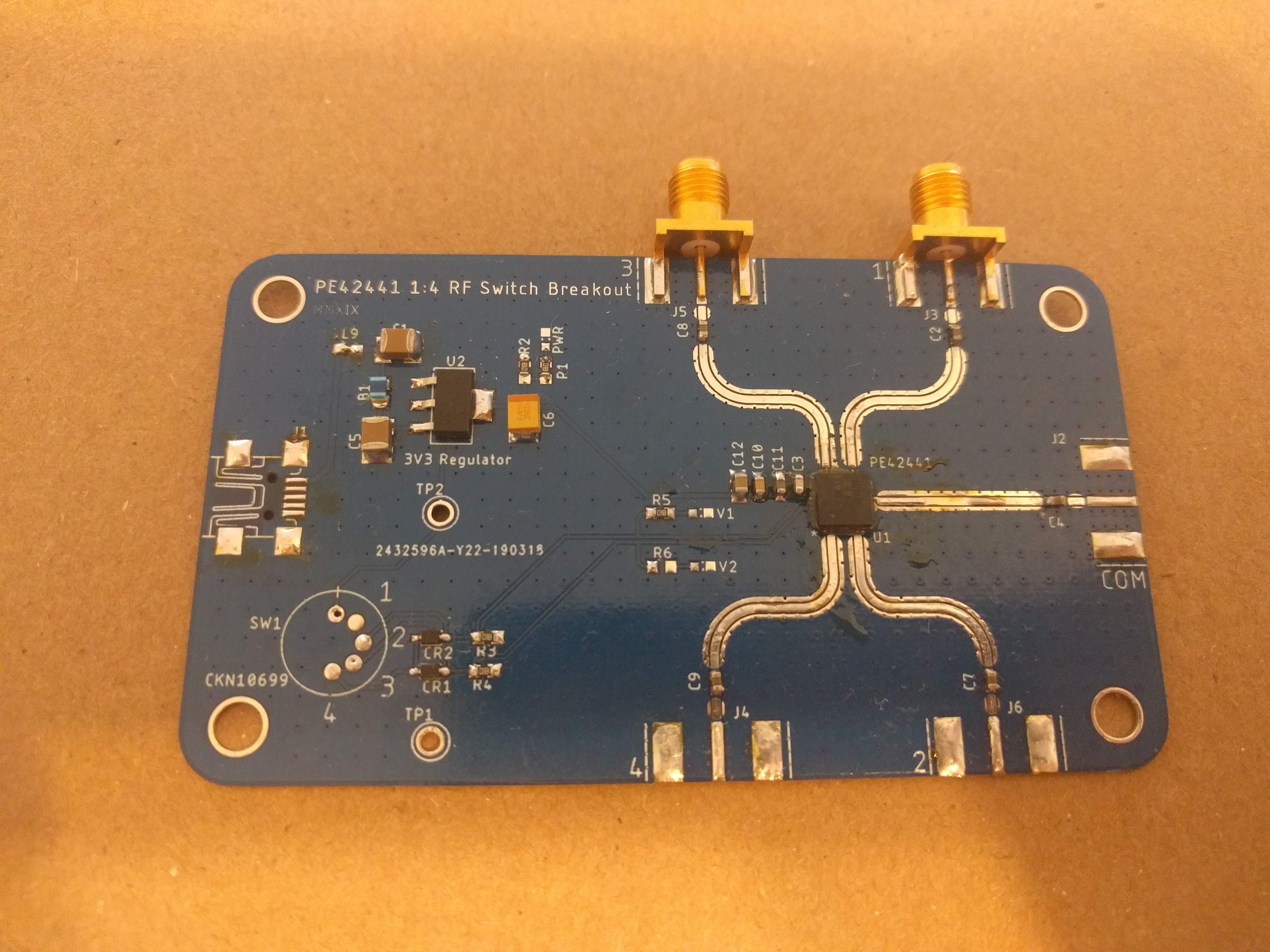

4:1 RF Switch

4:1 RF Switch

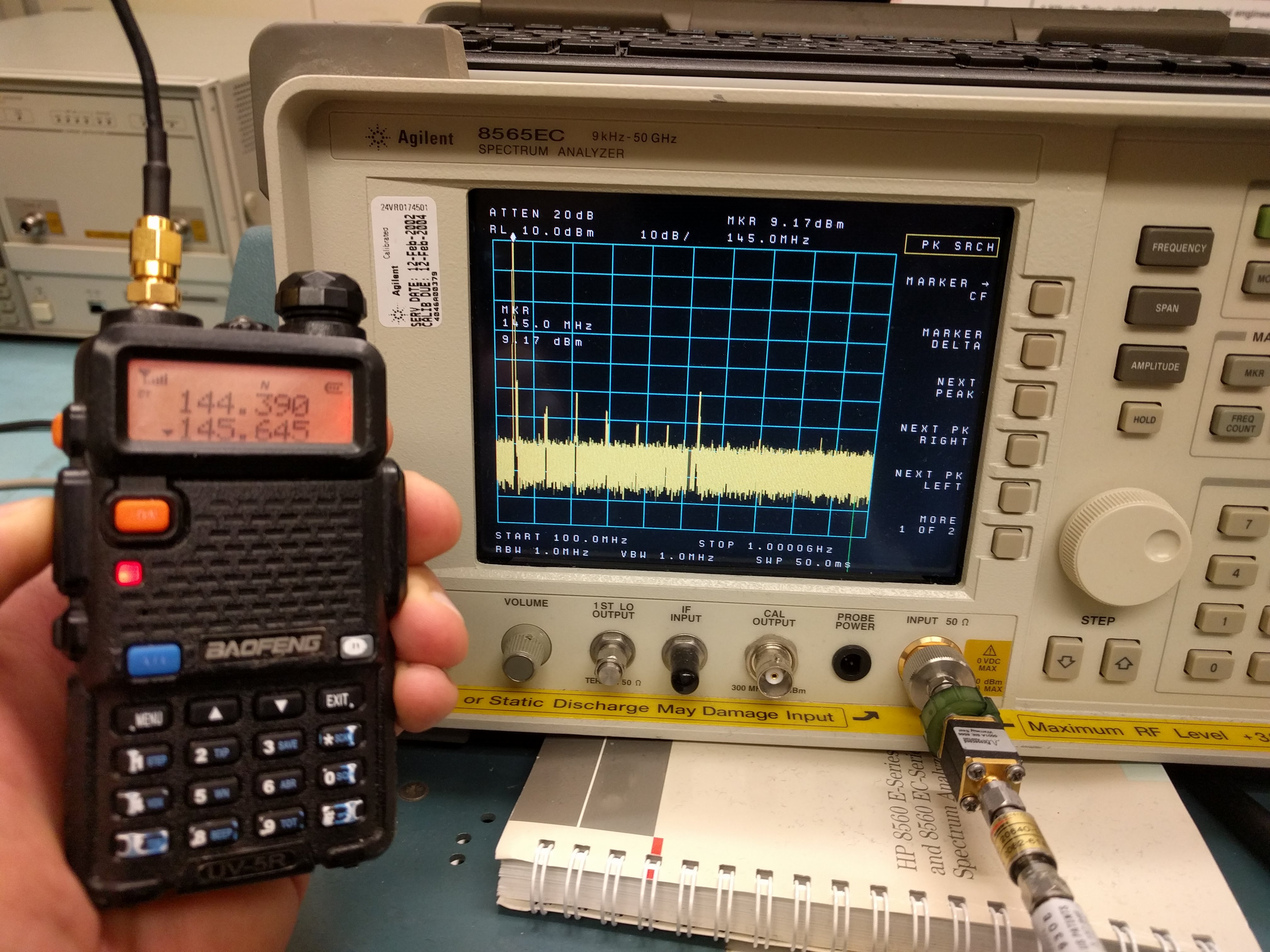

UV-5R on a Spectrum Analyzer

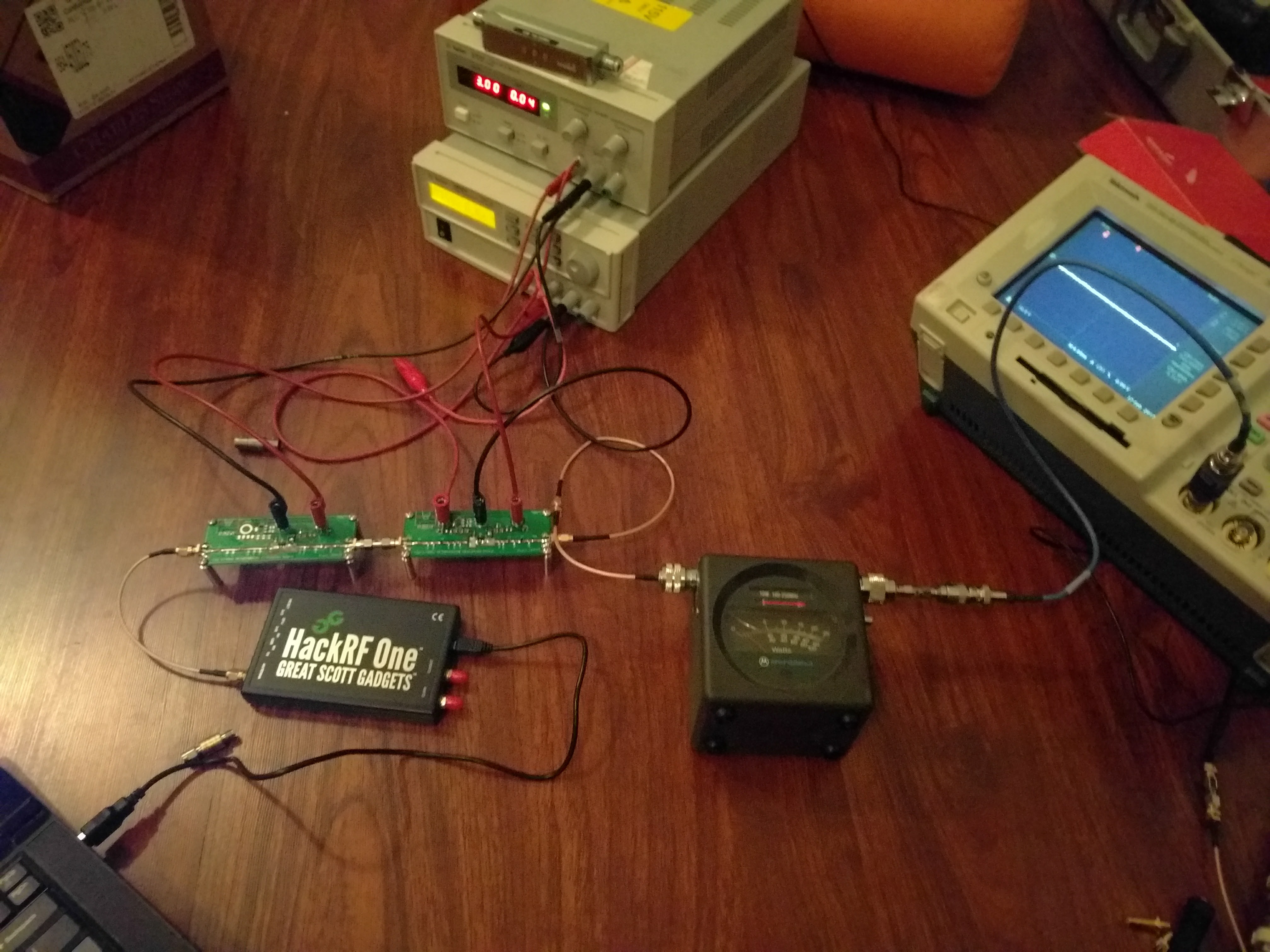

HackRF Driving VHF Preamp and PA

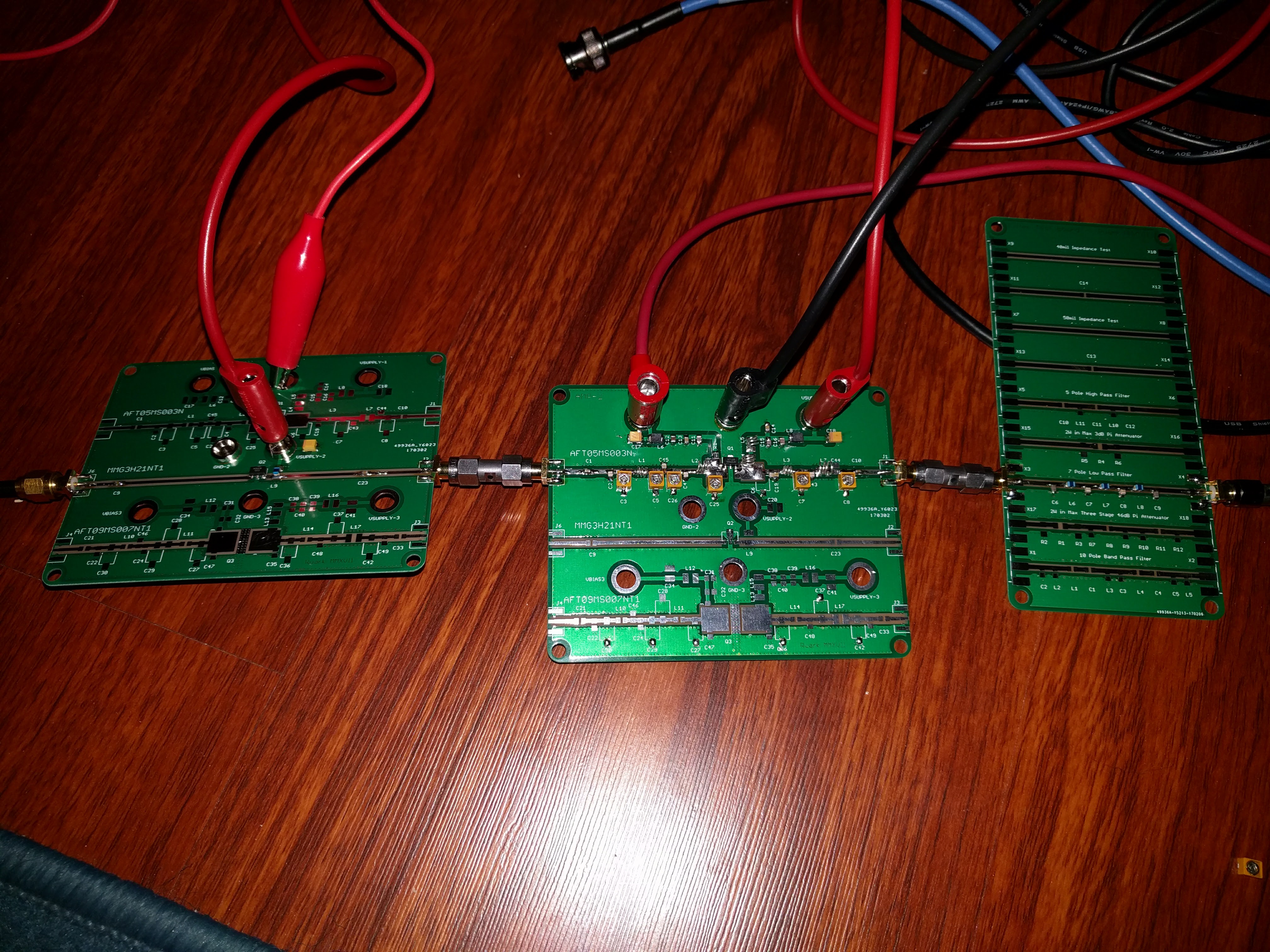

More Preamp and PA Prototypes

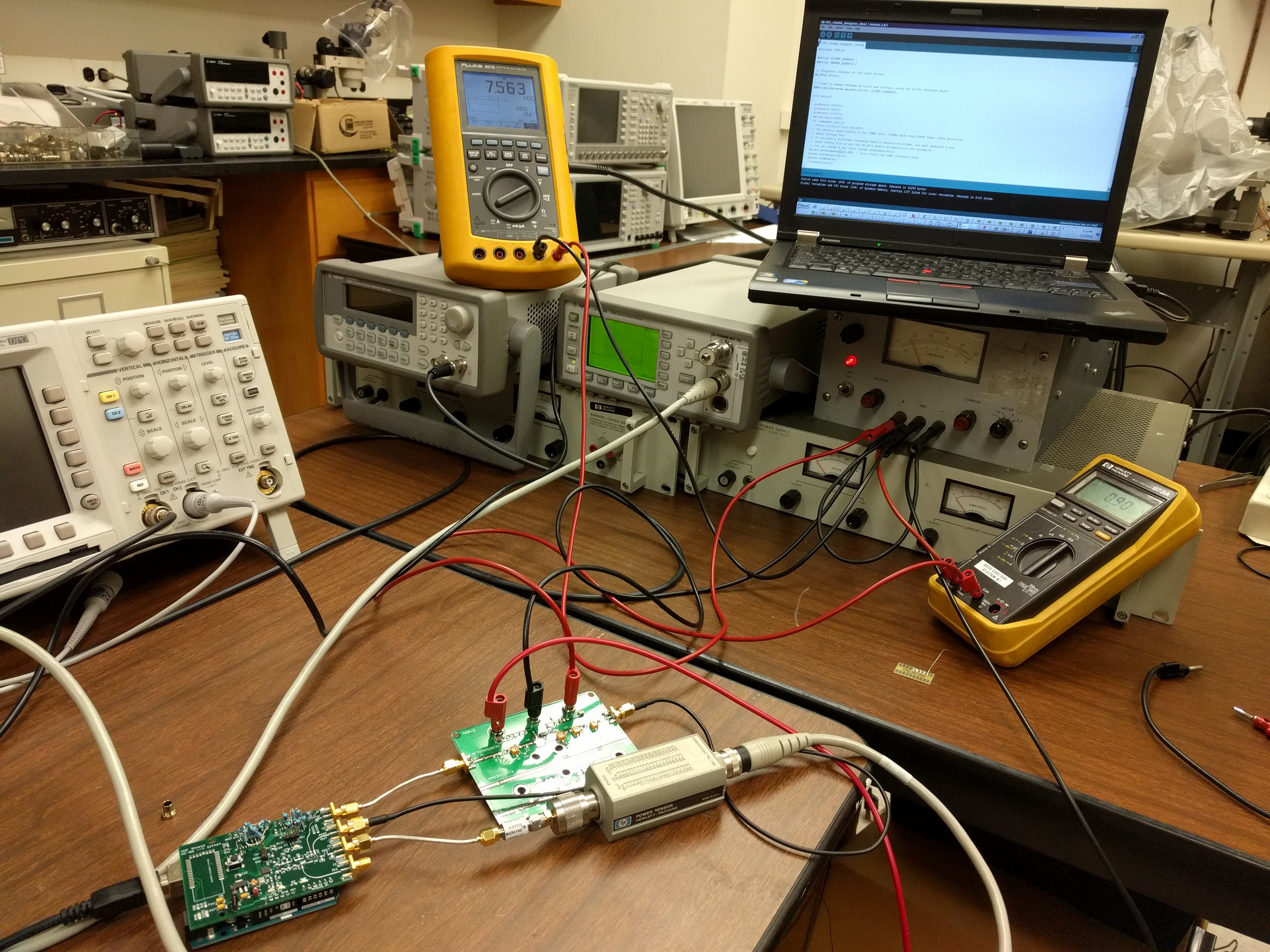

Testing Output Power of Bluetooth to VHF FSK Bridge with PA

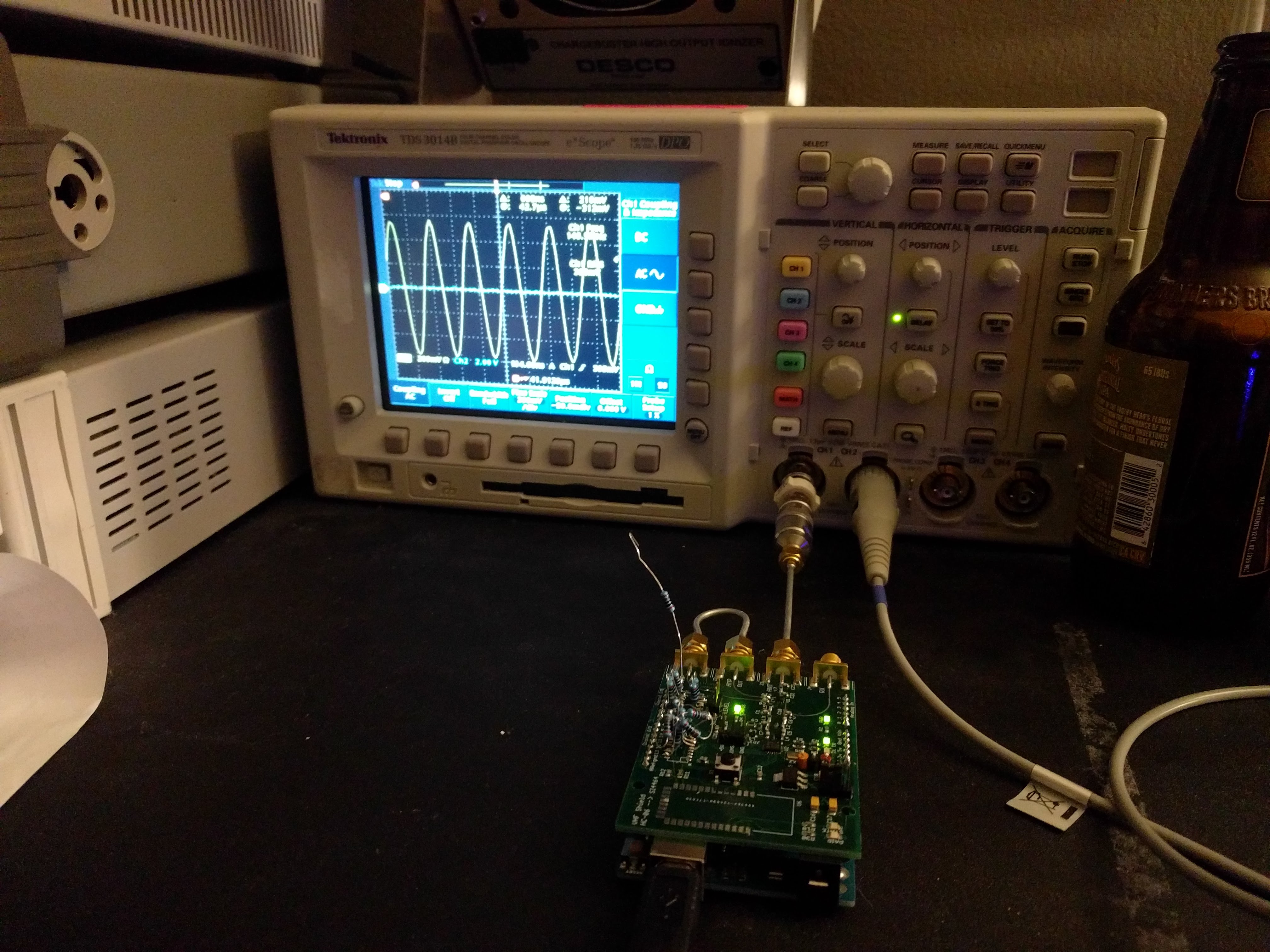

Output of Bluetooth to VHF FSK Bridge on Scope
